Laboratory Prediction of Tire Tread Wear and associated high frequency Vibrations

TESTING AND MEASURING Laboratory Prediction of Tire Tread Wear and associated high frequency Vibrations

01.01.2023 Von Hiroshi Mouri, PhD, Rubber Consultant, Former President, Bridgestone Americas Center for Research and Technology 1 min Lesedauer

A method to predict tire tread wear in the laboratory was introduced based on low severity tire wear mechanism. The tire acceleration distribution was used to determine the slip ratio of the test. Sample load was determined using vehicle weight and tire inflation pressure.

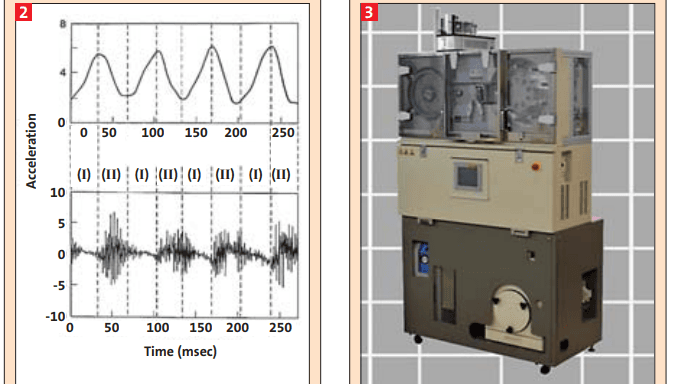

Fig.2 High frequency vibration observed by Fukahori et al. Fig.3 The FPS Abrasion Tester by Ueshima(Bild:) — Fig.2 High frequency vibration observed by Fukahori et al. Fig.3 The FPS Abrasion Tester by Ueshima
(Bild:)

The mechanism of tire wear and rubber wear test methods have been researched for more than a century ever since the advent of pneumatic tires. In 1929, Lambourn was the first to propose and patent a laboratory wear tester that correlated with tire wear test results. From excerpt of Lambourn‘s results, Mouri found a decent correlation between rubber wear test and tire test, where the correlation coefficient was as high as R2= 0.96, although the range was quite wide with nearly four-fold difference between the worst compound and the best compound.
