CONSTRUCTION AND SIMULATION Simulation of a Heat-Buildup Process on Rubber Components

Von Phillip Werner, Herbert Baaser, Bingen, Germany 1 min Lesedauer

This article describes the simulation setup and the development of a simulation method for modeling the self-heating of cyclic-loaded rubber components within the well-known ABAQUS FE environment.

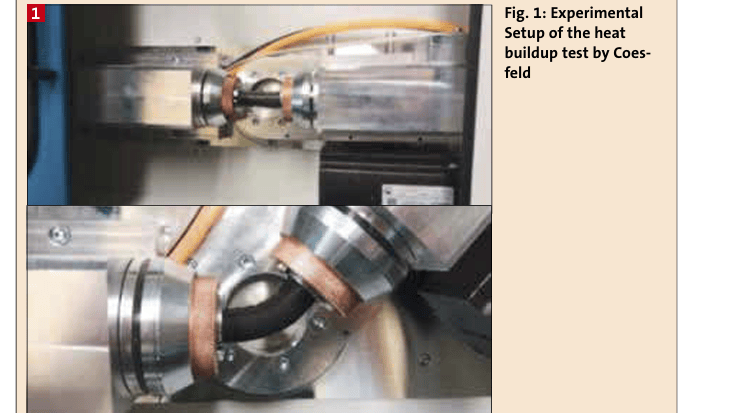

Fig. 1: Experimental Setup of the heat buildup test by Coesfeld(Bild:)
Fig. 1: Experimental Setup of the heat buildup test by Coesfeld
(Bild:)

Based on initial considerations on the kinematics of a simple shear deformation our purpose is to implement the self heating of elastomers under cyclic loading depending on the temperature-dependent properties of elastomers within the finite element system ABAQUS [4].
